H Frame Scaffolding

H Frame :

The combination of H frame & Cross Brasing can be used as staging for slaps at more heights of commercial, industrial building & also for Staging of Bridges , Flyovers. It is a great alternative for builders or contractors who want to buy scaffold for themselves . Its light weight , easy & fast to erect are the fantastic features of this scaffolding.

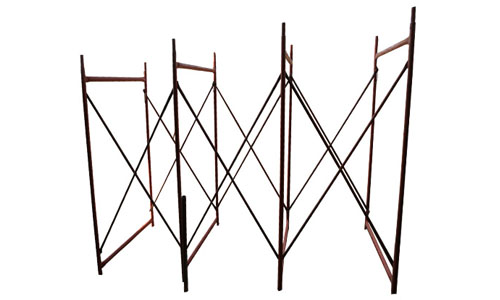

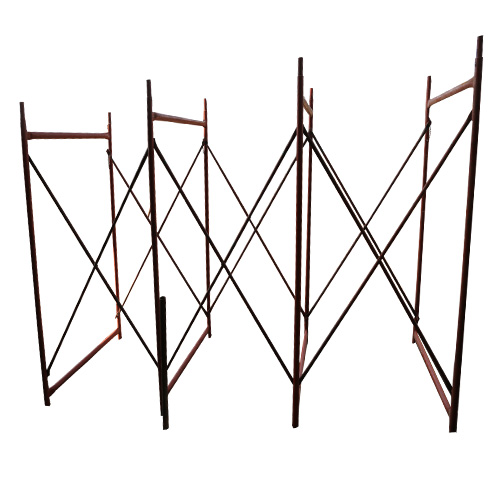

H-frame

Code Height (mm) Width (mm)
HF-1027 2000 1250
HF-1028 1500 1250
HF-1029 1250 1250
HF-1030 1000 1250
HF-1031 2000 900
HF-1032 1500 900
HF-1033 1250 900
HF-1034 1000 900

Cross Bracing :

Cross Bracing are made up of M.S. Pipe of 25 mm OD. It can be made in variable sizes. The Cross Bracing’s length might be according to weight overhead . There are four hole at the end of bracings.

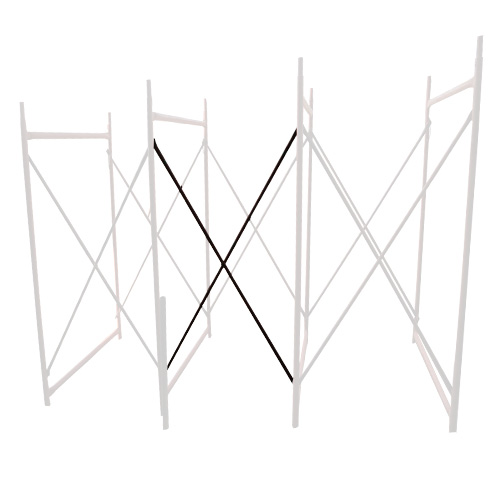

cross bracing

Code A (mm) B (mm) C (mm)
CB1035 2198 1830 1219
CB1036 2045 1830 914
CB1037 1928 1830 610

Joint Pin & Lock Pin :

Joint Pins are made up of M. S Pipe 37 & 34 mm O D . The length of joint pin is variable between 150 mm to 250 mm. While the lock pin is made up of M.S Bar 16 mm O D.

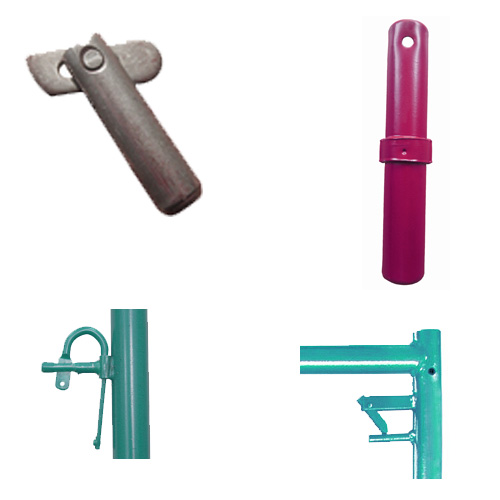

Joint Pin&Lock Pin

Code Length (mm) Outer Diameter (mm) Thickness (mm)
JP1038 150 – 250 34 / 37 2.2
LP1039 40 16
LP1040 129 16
