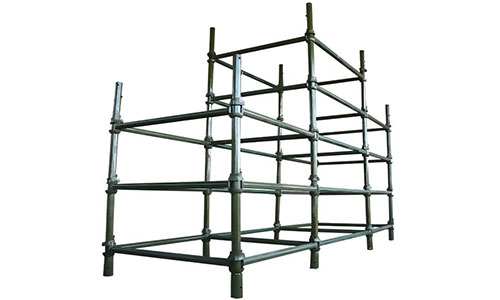

Cuplock Scaffolding

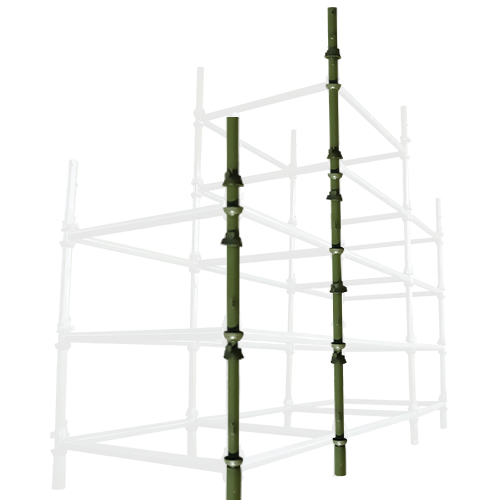

Standard Vertical Pipe:

Made up of high grade steel pipe 48mm diameter x 3mm thick. The Standards Vertical & Ledger (Horizontal) are two components of cup lock scaffolding system. The standard vertical cup lock pipe are formed by two cups – fixed bottom cup which is welded to the standard vertical pipe while the movable top cup rotated downwards to tightened the horizontal ledger pipe. The forged blade welded at the end of horizontal ledger pipe.

 Standard Vertical Pipe copy





Specifications :
Code Length (mm) Thickness (mm) Tube Diameter (mm)
SGI-V-1011 3000 mm 2.80/ 3.0/ 3.2 48
SGI-V-1012 2500 mm 2.80/ 3.0/ 3.2 48
SGI-V-1013 2000 mm 2.80/ 3.0/ 3.2 48
SGI-V-1014 1500 mm 2.80/ 3.0/ 3.2 48
SGI-V-1015 1000 mm 2.80/ 3.0/ 3.2 48



Horizontal Ledger Pipe:

Made up from high grade steel pipe 48 mm diameter .The forged blade welded at the end of horizontal ledger pipe which locate between the top & bottom cup.

Horizontal Ledger Pipe

Specifications :
Code Length (mm) Thickness (mm) Tube Diameter (mm)
SGI-L-1016 2000 mm 2.80/ 3.0/ 3.2 48
SGI-L-1017 1750 mm 2.80/ 3.0/ 3.2 48
SGI-L-1018 1450 mm 2.80/ 3.0/ 3.2 48
SGI-L-1019 1200 mm 2.80/ 3.0/ 3.2 48
SGI-L-1020 950 mm 2.80/ 3.0/ 3.2 48

Cantilever Bracket:

Made up from high grade steel pipe 48 mm diameter. Cantelever scaffold is an independent tied standing scaffold erected canteliver beams out from building or structure .

Cantilever Bracket copy

Specifications :
Code

Effective Length (mm)

Thickness (mm) Tube Diameter (mm)
SGI-CL-1021 2500 mm 2.80/ 3.0/ 3.2 48
SGI-CL-1022 1500 mm 2.80/ 3.0/ 3.2 48
Cuplock Scaffolding
